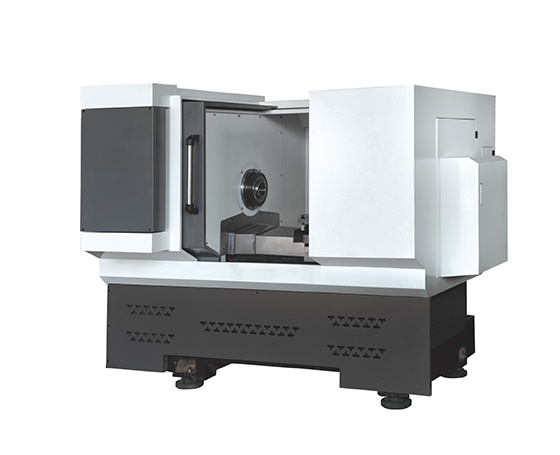

YD6136-600 Overall Flat Rail
Classification:Hard rail

Our core products have the advantages of high precision, high efficiency and long service life, and are widely recognized by customers at home and abroad.

Phone:+8617770338778
WhatsApp:+8617770338778
Email:297113729@qq.com
Contact Us →
PRODUCT PARAMETERS

YD6136-600 Integral Flat Rail Main Specifications


Name

project

unit

Parameters

Work ability

Maximum slewing diameter of the bed

mm

400

Maximum turning diameter on the skateboard

mm

230

Distance between the two peaks

mm

600

Total width of bed guide rails

mm

400

spindle

Spindle head type

GB

A2-6

spindle through hole diameter

mm

56/68

maximum spindle speed

r/min

3000

Main motor

Main motor power

Kw

5.5

X-direction lead screw

FD3208

mm

670

Z-direction lead screw

FD4008

mm

1100

X/Z axis

X/Z axis travel

mm

350/700

X/Z axis rapid traverse speed

m/min

12/12

X-ray track

Taiwan HIWIN HGH30CA rail

mm

800

Z-rail

Taiwan HIWIN HGH35CA guide rail

mm

1200

knife holder

Tool holder cross-sectional dimensions

mm

25X25

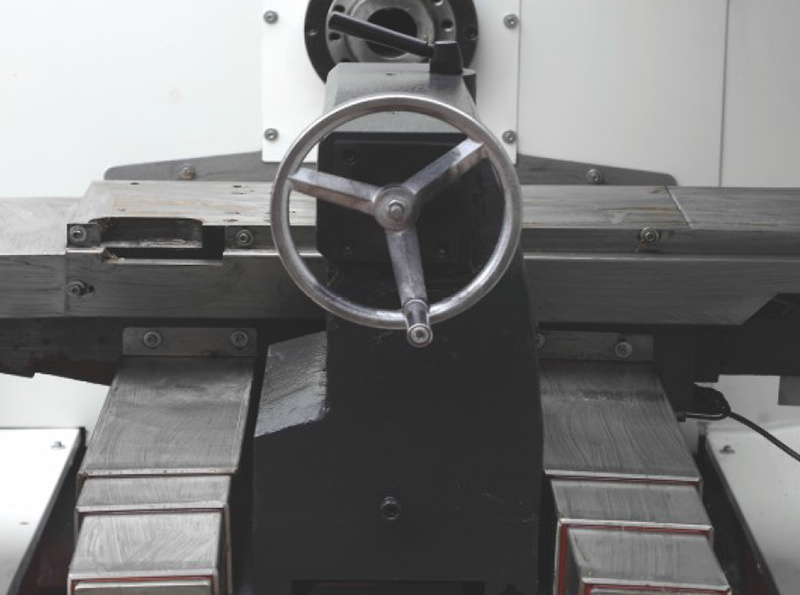

Tail Seat

Sleeve diameter

mm

70

Effective stroke of sleeve

mm

150

Tailstock sleeve tapered hole


MT5

size

External dimensions (length x width x height)

mm


weight

Net weight (approx.)

Kg



Main components list of spindle


Name

Size and Specifications

Place of origin/manufacturer

Spindle front bearing

7218

Domestic

Spindle rear bearing

7216

Domestic

X-direction lead screw

FD3208

Qidong, Jiangsu

Z-direction lead screw

FD4008

Qidong, Jiangsu

X-axis linear guide

HGH30

HIWIN Taiwan

X-axis linear guide

HGH35

HIWIN Taiwan

X-direction fixed end bearing

760205 flange

Domestic

Z-direction fixed end bearing

760205

Domestic

X-axis drive motor

130


Z-axis drive motor

130



Note: For the above brands, if any inconvenience is caused by the supplier (such as delivery delays, price adjustments, or products failing to meet requirements), our company may, at its discretion, use other equivalent brands.

FAQS
Q: What are the main product series of your company?
A:

Our main product series include WH6150, CK6150, WH6140, WH6136-600 and other series of CNC machine tools, as well as double-head special machines, multi-head special machines, CNC lathe gearboxes, automatic loading and unloading equipment, etc.

Q: Can the parameters of standard products be adjusted?
A:

Yes, we can appropriately adjust the key parameters (such as the distance between two centers, guide rail type) of standard products according to your actual processing needs. For special needs that cannot be met by standard parameters, we can provide customized design services.

Q: What is the difference between linear guide and hard guide products?
A:

Linear guide products have the advantages of fast feeding speed, high processing efficiency and small error, which are suitable for precision processing of small and medium-sized parts; hard guide products have strong wear resistance, high rigidity and stable performance, which are suitable for heavy-duty cutting and high-intensity processing scenarios.

Q: What is the service life of your CNC equipment?
A:

Under normal use and regular maintenance, the service life of our CNC equipment can reach 8-10 years. We use high-quality accessories and strict heat treatment technology to effectively extend the service life of the equipment.

Q: What types of customized products can your company provide?
A:

We can provide customized services for double-head special machines, multi-head special machines, CNC lathes, automatic loading and unloading equipment, and also customize automatic production lines according to your production process and needs.

Q: What is the customization process and cycle?
A:

The customization process is: Demand Communication → Scheme Design → Sample Trial Production → Customer Confirmation → Mass Production → Delivery Installation → After-sales Service. The customization cycle is generally 20-45 working days, which is determined according to the complexity of the product and the order quantity.

Q: Do I need to pay a deposit for customized products?
A:

Yes, after the customization scheme is confirmed by both parties, you need to pay 30%-50% of the total amount as a deposit. The deposit will be deducted from the total payment when the final payment is made.

Q: What is the minimum order quantity for your products?
A:

For standard products, the minimum order quantity is 1 set; for customized products, there is no strict minimum order quantity, which can be determined according to your actual needs.

Q: What are the payment methods and delivery terms?
A:

Payment methods: We accept bank transfer, WeChat transfer, Alipay and other payment methods; Delivery terms: For standard products, the delivery time is 7-15 working days after payment; for customized products, the delivery time is subject to the confirmed customization cycle. We support door-to-door delivery and logistics distribution.

Q: Does your company support OEM/ODM cooperation?
A:

Yes, we support OEM/ODM cooperation, and can provide processing and production services according to your brand, design scheme and technical requirements, helping you build your own brand.
